2024 Wonderland RV XTR 2 Bunk Crzr Edition

EXTREME OFF-ROAD CARAVAN & Available to view at our Melbourne showroom!
The XTR is the jewel in Wonderland RV’s crown, fully loaded with all the features and luxuries demanded by the most discerning and intrepid travellers. It’s the pinnacle of off-road caravanning, made to conquer the most extreme Australian landscapes without sparing a single luxury.

Upgraded Options fitted on this caravan

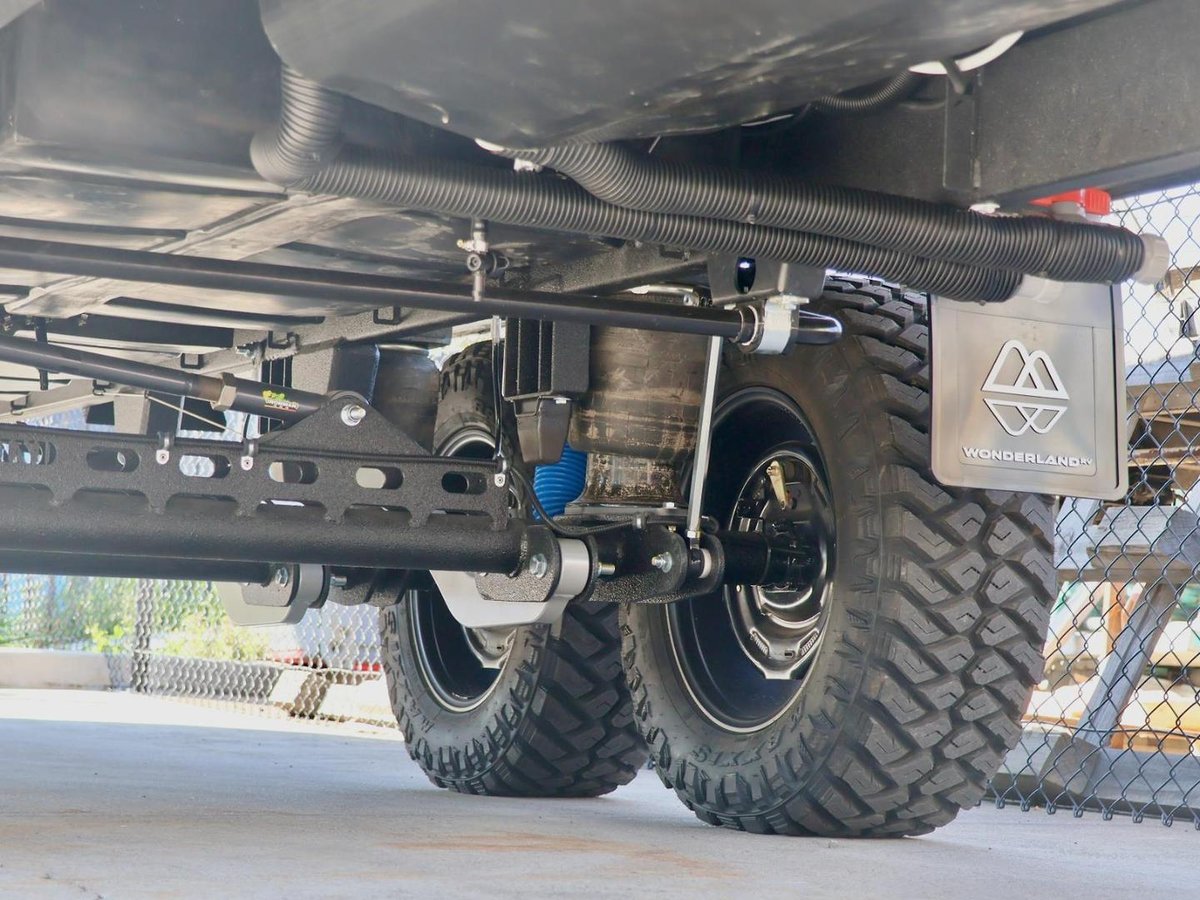

- CRZR Chassis & Suspension
- Speedliner Textured Black Chassis Finish
- 4.5T Solid Beam Long Travel Lvl 3 Wireless w Radius
Arms & Superior Shocks
- Victron 24v BMS
- 5000w Inverter
- 1200w Solar
- 300Ah @24v Lithium
- 1x 200L Drinking Water Tank
- 1x 200L Fresh Water Tank
- 1x 60L Grey Water Tank
- Hydronic Diesel Heater & HWS "Gasless"
- D045 Coupling
- Woodbox
- Starlink Provision
- 4x Sirocco Fans
- Pull Out Kitchen Bin
- 224L Compressor Fridge
- 2x 4kg Gas Bottles
- Grey Water Bypass
- GUNMETAL GREY Granite Kitchen Sink Bowl Only
- Gunmetal - 3 Way Filtered Gooseneck Kitchen Tap,
Gunmetal Ensuite Tap, Gunmetal Shower Rail & Gunmetal
Bathroom Accessories

Key Standard Inclusions for our XTR range

CONSTRUCTION
- 19mm structural Grade Ply, CAD designed, CNC router cut, Interlocking Jigsaw Frame where the walls, furniture and cabinetry are all locked into each other for superior strength, durability and off-road performance.
- 1 Piece 35mm Composite Roof, Front & Back
- XPS Insulation
- 1 Piece Honeycomb Floor
- Dibond Marine Grade Composite Cladding
- CNC Lightweight Ply Furniture - precision cut with no gaps

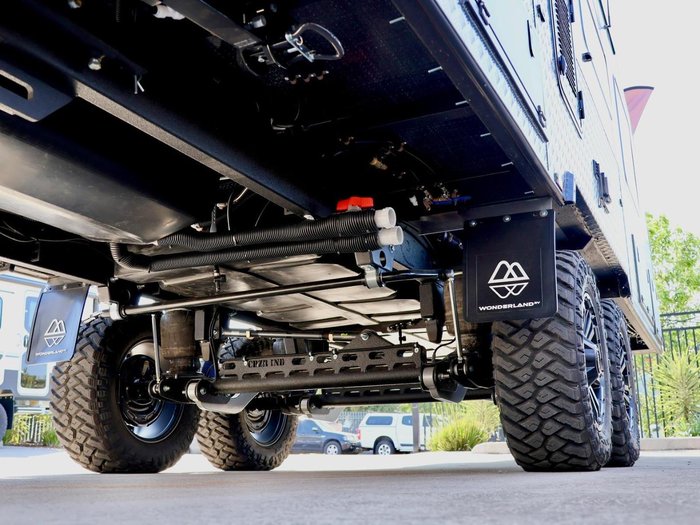

CHASSIS
- 6" A-Frame 1950mm & 12" Truss Chassis
- 4.4T Cruisemaster XT L3 Wireless suspension
- 12" Drum Brakes
- Grid Black 16" 265/75R16 BF Goodrich K02 6x139 ET0
- Black Tough Coat Chassis Finish
- 2 x Jerry can holders

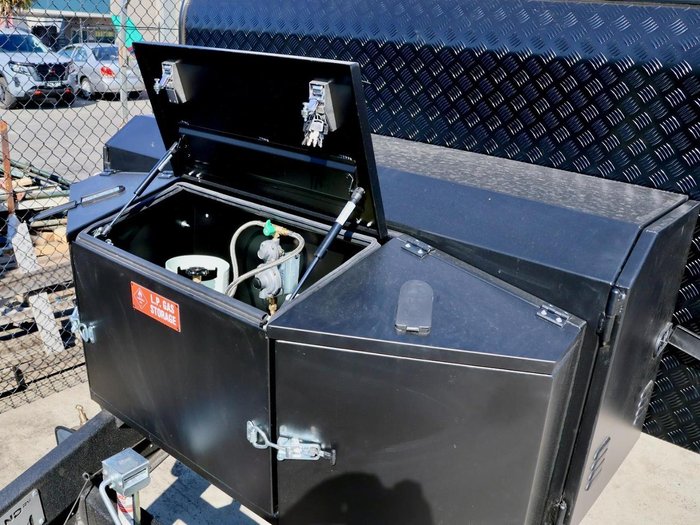

- Toolbox with 2 slides & 12v socket
- Cruisemaster DO 35 Hitch & 4.5T Chains
- Stone Deflector
- Dexter Sway Control

ELECTRICAL
- 1 x 450A/h Lithium Battery
- Redarc Alpha 100 with Redvision Display
- 1000w Solar
- 3000w Inverter to all PowerPoints
- 1 x Grey Anderson Input 1 x yellow portable solar input
- External entertainment pack with hatch
- 6 external lights & 3 Anti Bug External Lighting
- Twin Lens Reverse Camera & Car Kit
- Fusion Sound System & Speakers
- 24" smart TV with Internal & External Points
- Dometic FreshJet Air Conditioner
- 23L Mirrored Microwave
- Mood lighting

SAFETY
- Breakaway
- Smoke detector
- LPG Detector
- Fire Blanket & Fire extinguisher

PLUMBING
- 2 x 100L Fresh Water Tanks
- 1x 100L Grey Water Tank
- 1x 70L Dedicated Drinking Water Tank
- Tank Quick Fills & Mains Water Connection
- Swift Mini Grill & 4 Gas Burner or Portable Induction Cooktop
- External Shower
- 3kg Wall Mounted Washing Machine
- 1 x BBQ Gas Bayonet
- Dometic 188L Compressor Fridge & Freezer
- Swift Gas & Electric Hot Water system
- 2 x Galvanised gas bottles
- Thetford Plastic Bowl Cassette Toilet

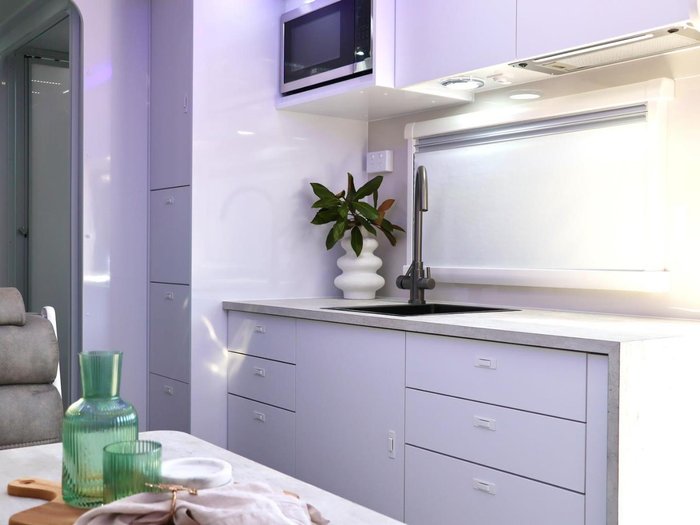

INTERNAL
- Soft Close Drawers
- Concealed hatches on overhead cupboards
- Frosted shower screen
- Waterfall Benchtop
- 6'3ft Queen Pillow top Mattress
- 1.9m Long bunks (if applicable)
- Pantry – LAYOUT SPACIFIC

EXTERNAL
- Fully lined galvanised tunnel boot
- 850mm High Black Checker Plate Protection
- Dometic 8300 Grey Awning with black arms
- 2 x Four Seasons Roof Hatches
- 2 x Large LED Hatches
- Large Double-Glazed Windows
