2025 Wonderland RV XTR 19'06" Couples Layout

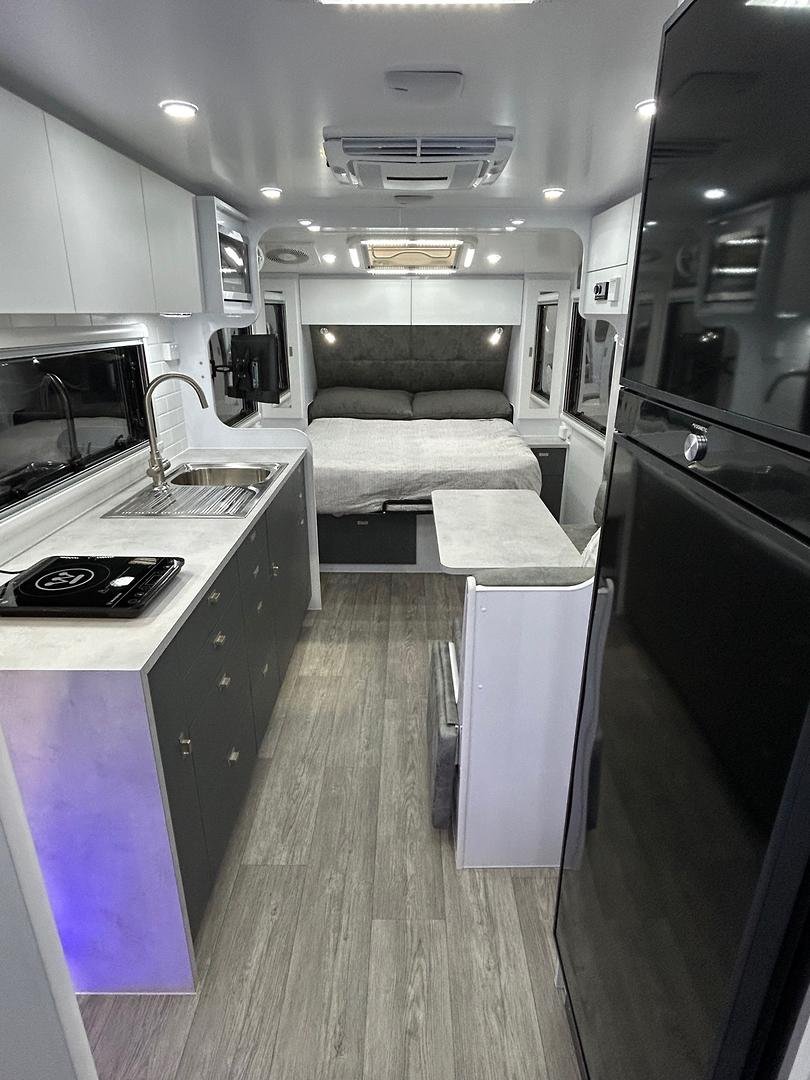

A classical couple's layout, featuring a rear entry door and the master bedroom at the front of the van.

CHASSIS
Heavy-Duty off-Road Chassis – Australian Made RHS Steel
6" x 1950mm A-Frame, 4" riser &12" Truss Chassis
4.5T Cruisemaster ATX L3
12" drum brakes with Dexter sway control
Cruisemaster DO 55 Hitch & 4.5T Chains
Grid black 17" 265/70R17 BF Goodrich K02 5 × 150 ET40
Black Toughcoat chassis finish
Dual TB68 storage boxes (2 slides & 12v socket)
2 x 9kg gas cylinders
ALKO 8" Wide Large Clamp
Caravan Jack & Brace
Stone Deflector

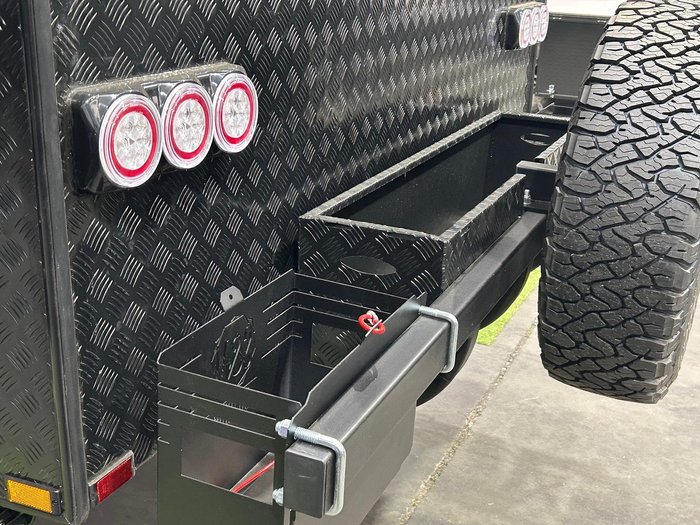

4 Arm Bumper Bar
2 x Jerry can holders
Woodbox
Double Step

ELECTRICAL
Behind fridge installation
Water tank display
Redarc behind fridge electrical
Redviison Alpha 100
3000w Inverter
1000w Solar
600Ah Batteries
1 x Grey Anderson Input 1 x yellow portable solar input
USB outlets at seating, bedroom, external.
External entertainment pack with hatch
Plenty of LED Lighting Internally & Externally
6 external lights & 3 Anti Bug External Lighting
Internal LED downlights
Fusion Sound System & Speakers
Cowfish TV antenna & Starlink Connection Point
24" smart TV with Internal & External Points
Dometic Fresh Jet Air Conditioner

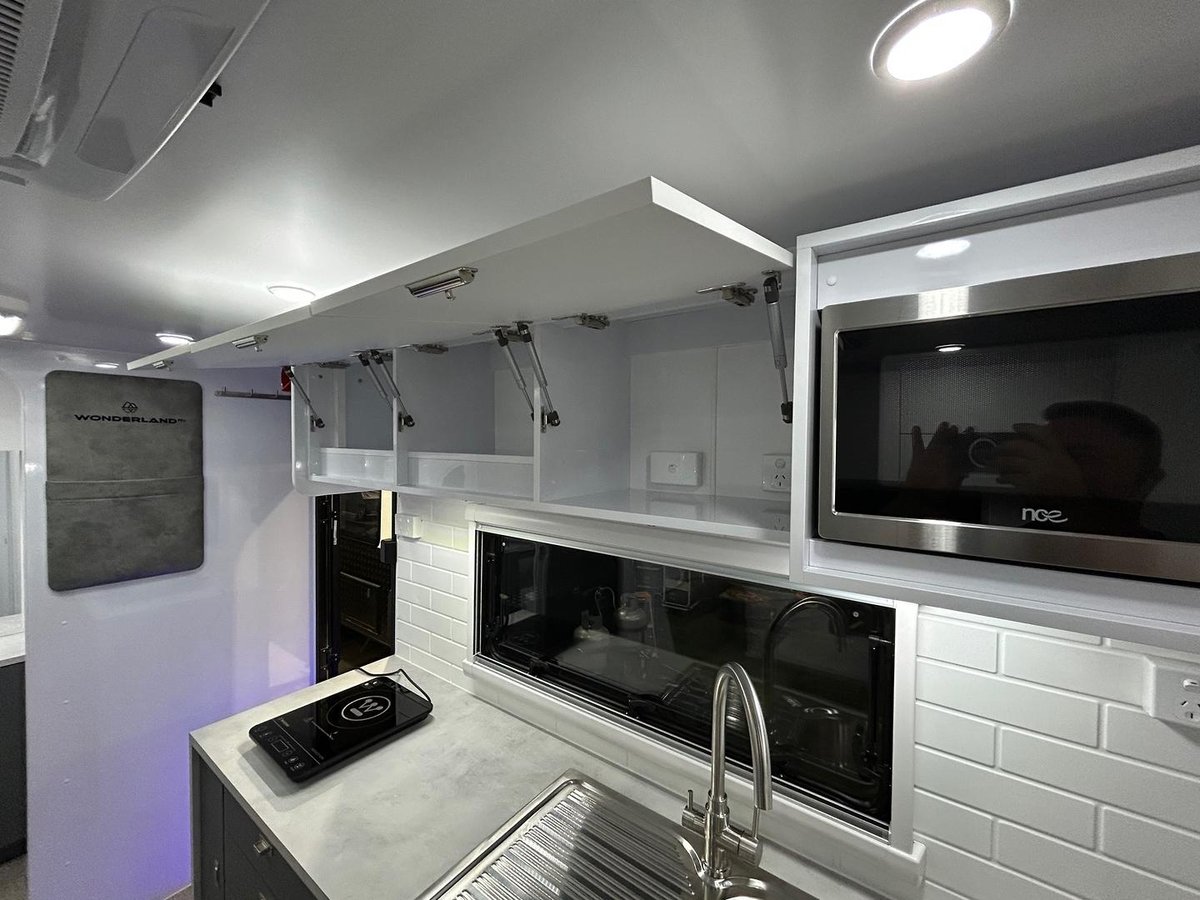

23L Mirrored microwave
Blue Ambient Mood LED Lighting
Portable Induction Cooktop
Swift recessed rangehood
Safety Dave Reverse camera & Car Monitor

PLUMBING
2 x 100 LT Fresh Water storage
1x 100 LT Grey Water Tank with bypass
1x 55lt Dedicated Drinking Water Tank
Quick Fills & Mains Water Connection
Hydronic diesel hot water service and heater (gasless)
OGO Composting Toilet
Hot & Cold External Shower
3kg Wall Mounted Washing Machine
1 x BBQ Gas Bayonet
1 x Cold Tap to A Frame
Dometic 224lt Compressor Fridge & Freezer
2 x Gas Bottles

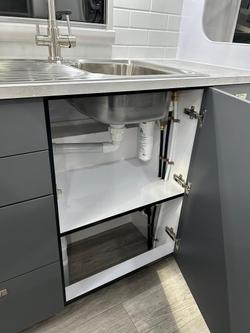

3 way chrome tall gooseneck kitchen tap with filter & ensuite tap

INTERNAL
CNC Lightweight Ply Furniture- precision cut with no gaps
Lightweight European Plywood Laminate Benchtops & Doors
Waterfall Benchtop
Full Height Pantry with Soft Close Drawers
Soft Close Drawers throughout the van
Firm back Lounge seating with support & footrest
Telescopic Table Leg
Pillowtop Mattress Queen 6’6"
Sirocco Fans
Bedhead & Magazine pockets
LED Hatches with Fans in Bathroom
Large Roof Hatches
Roller Blind on Entry Door
Breakaway; Smoke Detector; LPG Detector; Fire Blanket & Fire Extinguisher

EXTERNAL
Fully lined galvanised tunnel boot with External slide-out kitchen - K5i Weber BBQ provision, sink & portable induction cooktop
ISI Dual Bike Rack
External spice rack & picnic table with GPO & USB

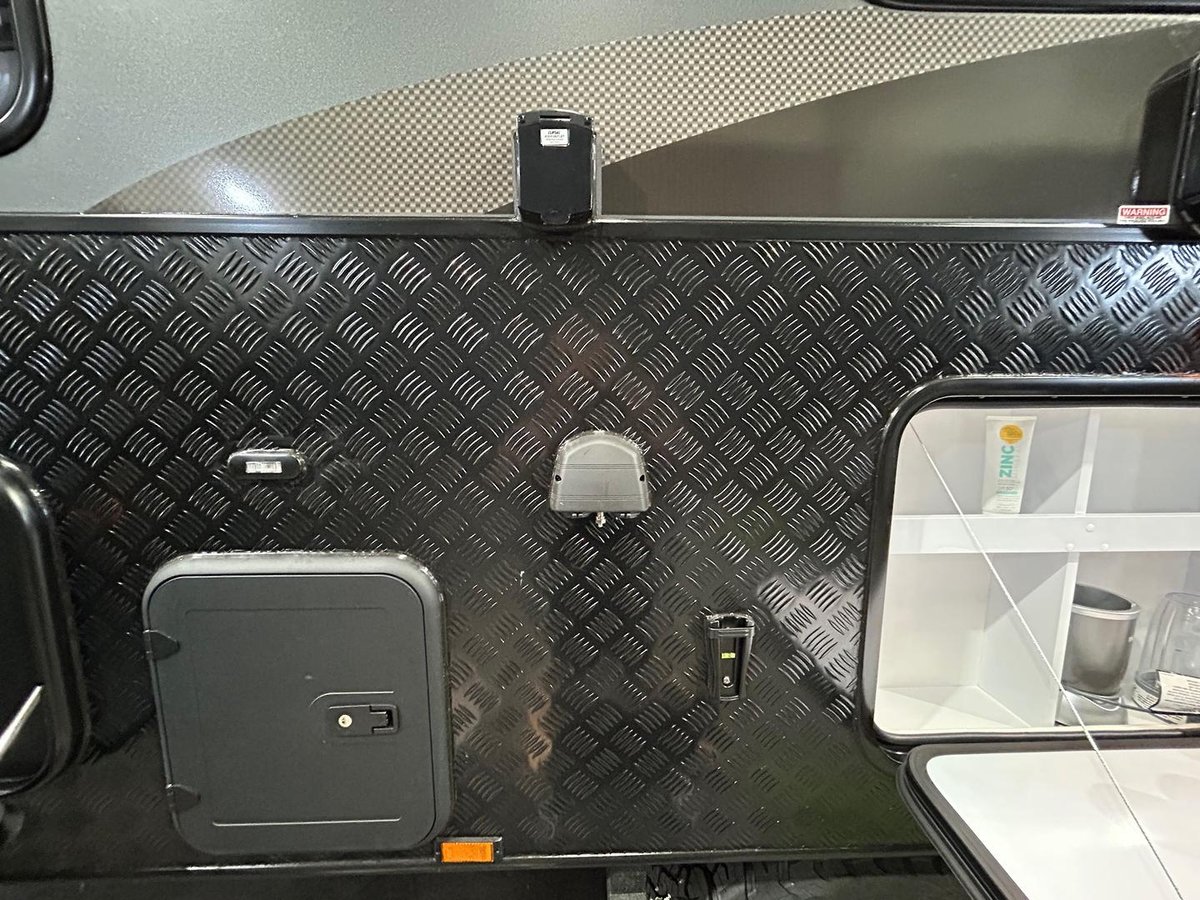

DiBond Marine Grade Composite Pannel
850mm Protection Plate
Dometic Grey Awning with Black Arms & Awning Support
External Entertainment Points & Speakers
High Access Tunnel Boot Doors
Black Picnic Table
Aussie Traveller Black 1820x622 Entry Door with security screen & triple locking mechanism
Large Double Glazed Windows with Dark Tint
Windows with flat non-concertina fly screen & block out

CONSTRUCTION
All Wonderland RV caravans come standard with:
One piece 35mm Sandwich Pannel Composite Roof which wraps around the Front & Back- NO JOINS
Honeycomb Floor – lightweight, waterproof & one piece
XPS Insulation
19mm structural Grade Ply CAD designed, CNC router cut, Interlocking Jigsaw Frame where the walls, furniture and cabinetry are all locked into each other for superior strength, durability and off-road performance.

WEIGHTS
ATM: 4500kg
Ball Weight: 220kg
TARE Weight: 2980kg
Travel height 3.22m
Travel Length 8.395m
